Oxygen Cone is a ventilation device used in fish farms to increase the saturated oxygen levels in water and to save oxygen by mixing it more efficiently into the water. The oxygen cone helps oxygen reach the bottom of the water more effectively. With the oxygen cone, the oxygen level and the amount of oxygen in the water can be automatically adjust ed. It is recommended to use a water level automation system for the efficient operation of the oxygen cone. This way, oxygen will meet the needs of the fish more efficiently and healthily. Our oxygen cone devices are typically produced with capacities ranging from 15 to 250 m³/hour, but they can be manufactured in much larger capacities according to project requirements. The oxygen cone is made of fiberglass and is designed to withstand 3 bar pressure.
Model
|
Water Flowrate
2 bar
|
Oxygen Dosing
2 bar (L/min)
|

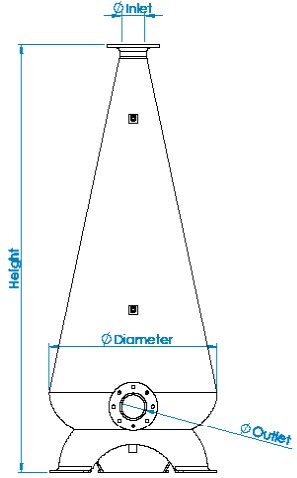

Diameter
(mm)
|
Cone Height
(mm)
|
Cone Volume
(L)
|
Inlet & Outlet
Connection (mm)
|
Material
|
Standard
Equipments
|
Optional
Equipments
|
m³/h
|
L/min
|
AP-OXYCON-15
|
15
|
250
|
6
|
550
|
1700
|
155
|
63
|
CTP
|
Water Level Pipe
Pressure Gauge
Pneumatic Gas Connection
Drain Valve
|
Gas Leveler
Automatic Valve
Gas Debimeter
|
AP-OXYCON-30
|
30
|
500
|
12
|
700
|
2050
|
305
|
90
|
CTP
|
AP-OXYCON-50
|
50
|
833
|
32
|
850
|
2350
|
520
|
110
|
CTP
|
AP-OXYCON-75
|
75
|
1250
|
28
|
980
|
2600
|
770
|
125
|
CTP
|
AP-OXYCON-100
|
100
|
1667
|
38
|
1100
|
2800
|
1045
|
160
|
CTP
|
AP-OXYCON-150
|
150
|
2500
|
56
|
1250
|
3150
|
1518
|
200
|
CTP
|
AP-OXYCON-200
|
200
|
3333
|
75
|
1380
|
3460
|
2031
|
200
|
CTP
|
AP-OXYCON-250
|
250
|
4167
|
94
|
1500
|
3700
|
2576
|
250
|
CTP
|
AP-OXYCON-350
|
350
|
5833
|
131
|
1700
|
4100
|
3668
|
315
|
CTP
|
AP-OXYCON-500
|
500
|
8333
|
187
|
1900
|
4500
|
5018
|
355
|
CTP
|
In case the tank/pool supply is provided to you in a disassembled (modular) form, we offer two alternatives:
1st Option:
Tank panels and installation equipment are delivered, and the installation is carried out by Fatih Polyester’s expert team at the designated location.
2nd Option:
After the delivery of the tank panels, the installation is performed by the client in accordance with the instructions provided by Fatih Polyester.
